OD Checking Snap Gauge Manufacturer in Gujarat & India
As a trusted OD Checking Snap Gauge Manufacturer Gujarat, Raj Engineers India supplies precision gauges across Gujarat and India. Our snap gauges are widely used in automotive industries, CNC machining units, textile machinery manufacturing, and heavy engineering industries.
They are often used along with ring gauge used for precision inspection and paddle gauge for internal checking to ensure complete quality control. Our manufacturing facility ensures quick turnaround time with reliable quality.
Experience
Years of Experience
Team Members
Happy Clients
What is a Snap Gauge?
A snap gauge is a handheld limit gauge used to check external diameters and widths quickly on the shop floor. It gives a clear pass–fail indication against upper and lower size limits without needing a full measurement readout.
Snap gauges are ideal for high-volume production where speed, repeatability, and consistent OD control matter as much as absolute micrometer accuracy.
What snap gauge inspection delivers
OD Checking Snap Gauge Manufacturer in Gujarat & India
As a trusted OD Checking Snap Gauge Manufacturer Gujarat, Raj Engineers India supplies precision gauges across Gujarat and India. Our snap gauges are widely used in:
Industries we serve
- Automotive industries
- CNC machining units
- Textile machinery manufacturing
- Heavy engineering industries
Our manufacturing facility ensures quick turnaround time with reliable quality.
Types of Snap Gauges
Fixed Snap Gauge
Used for standard measurement with fixed dimensions.
Adjustable Snap Gauge
Allows flexibility for different size ranges.
Go / No-Go Snap Gauge
Used for tolerance checking in production.
Special Purpose Snap Gauge
Custom-designed gauges for specific applications.
Technical Specifications of Snap Gauge
| Parameter | Details |
|---|---|
| Material | High-grade tool steel |
| Hardness | 58–62 HRC |
| Accuracy | As per ISO / DIN standards |
| Surface Finish | Precision ground |
| Size Range | Standard and custom sizes available |
| Tolerance | As per application requirement |
Features of Snap Gauges
High measurement accuracy
Fast inspection capability
Durable and wear-resistant
Easy to use in production
Compact and efficient design
Reliable performance
Benefits of Using Snap Gauges
Fast Inspection
Ideal for high-speed production lines.
Improved Productivity
Reduces inspection time significantly.
Accurate Measurement
Ensures proper external dimension control.
Reduced Human Error
Simplifies measurement process.
Cost Effective
Reduces rework and rejection.
Applications of Snap Gauges
They are often used along with ring gauge used for precision inspection and paddle gauge for internal checking to ensure complete quality control.

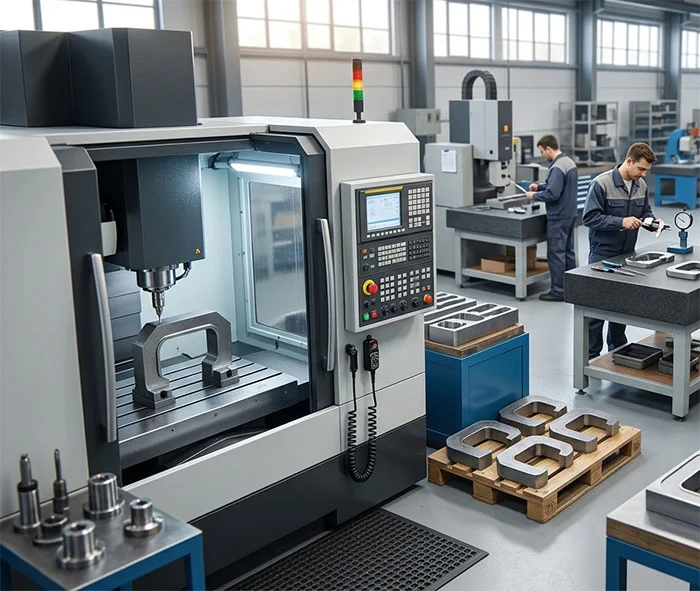

Manufacturing Process
Selection of high-quality raw material
Premium tool steel is selected for strength, hardenability, and stable dimensions in finished snap gauges.
Precision machining
Jaws and reference surfaces are machined to close limits before heat treatment and final grinding.
Heat treatment for hardness
Controlled processes target 58–62 HRC for wear resistance and long service on the shop floor.
Grinding and finishing
Precision grinding delivers accurate gauging faces and a smooth, stable surface finish.
Final inspection and testing
Each gauge is checked dimensionally and functionally so limits match your drawing and tolerance band.
Quality Assurance
Each snap gauge undergoes strict quality checks including:
This ensures consistent performance and long service life.
Why Choose Raj Engineers India?
Our expertise also includes gauges like plug gauge for hole size verification and paddle gauge for internal measurement.
Custom Snap Gauge Solutions
We offer customized snap gauges based on:
These are ideal for specialized industrial applications.
Cities We Serve Across India
We supply precision gauges to industries across major cities in India, ensuring timely delivery and consistent quality.
Frequently Asked Questions – Snap Gauge
It is used to measure external dimensions quickly and accurately.
They allow fast inspection while maintaining accuracy.
Fixed, adjustable, Go / No-Go, and special-purpose snap gauges.
Yes, they can be designed as per specific requirements.
High-grade hardened tool steel is commonly used.
They reduce inspection time and simplify measurement.
Yes, supply is available across Gujarat and major industrial cities in India.
Conclusion
Snap gauges are essential tools for fast and accurate external measurement in manufacturing processes. High quality snap gauges help improve productivity, maintain consistency and ensure reliable inspection in industrial applications.
